PC Pump
a. Clamp & oil cylinder.
b. Hydraulic pressure supply system which requires to maintain pressure for a long time.

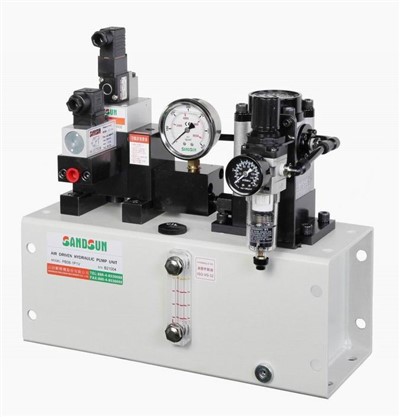

MODEL: PB
|
Model |
PB06 |
PB07 |
PB08 |
PB09 |
PB10 |
PB12 |
PB14 |
PB16 |
|
|
Hydraulic pressure |
Mpa |
43.1 |
33.3 |
26.0 |
20.6 |
16.7 |
10.8 |
8.8 |
6.9 |
|
kg/cm2 |
440 |
340 |
265 |
210 |
170 |
110 |
90 |
70 |
|
|
psi |
6250 |
4800 |
3750 |
3000 |
2400 |
1550 |
1300 |
1000 |
|
|
Flow |
cc/min |
1200 |
1600 |
2100 |
2300 |
2600 |
3200 |
3500 |
4000 |
|
Pressure ratio |
88 |
68 |
53 |
42 |
34 |
22 |
18 |
14 |
|
|
Length (L) |
75,95,110,125,155,185,215,245,275,305,335 mm |
||||||||
- Air pressure supplied at 0.49MPa (5kg/cm2) (71psi).

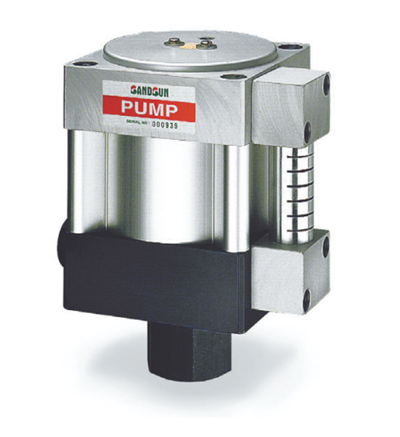

MODEL: PC
|
Model |
PC09 |
PC10 |
PC12 |
PC14 |
PC16 |
PC18 |
PC20 |
PC22 |
|
|
Hydraulic pressure |
Mpa |
49 |
40 |
25.5 |
19.6 |
16.7 |
11.8 |
9.8 |
7.8 |
|
kg/cm2 |
500 |
410 |
260 |
200 |
170 |
120 |
100 |
80 |
|
|
psi |
7100 |
5850 |
3700 |
2850 |
2400 |
1700 |
1400 |
1150 |
|
|
Flow |
cc/min |
1150 |
1600 |
2700 |
3600 |
4100 |
4750 |
5000 |
5300 |
|
Pressure ratio |
100 |
82 |
52 |
40 |
34 |
24 |
20 |
16 |
|
|
Length (L) |
80,110,125,140,170,200,230,260,290,320,350 mm |
||||||||
- Air pressure supplied at 0.49MPa (5kg/cm2) (71psi).
NON-LEAK VALVE MODEL: SV04,10
- It won't leak oil inside, and has the function to maintain pressure for a long time.
- Application for:
a. Clamp & oil cylinder.
b. Hydraulic pressure supply system which requires to maintain pressure for a long time.
|
Model |
SV04 |
SV10 |
|
|
Effective area |
mm2 |
15 |
25 |
PRESSURE SWITCH Model: ST-P16,P40
|
Model |
ST-P16 |
ST-P40 |
|
|
Pressure setting range |
Mpa |
2 ~ 16 |
4 ~ 40 |
|
kg/cm2 |
20 ~ 160 |
40 ~ 400 |
|
|
psi |
285 ~ 2250 |
570 ~ 5700 |
|
|
Voltage max. |
250V |
||
|
Current max. |
3A |
||
|
Temperature |
80℃ |
||
